badkeys - Finding Insecure Public Keys
https:/badkeys.info/
Hanno Böck
Public Key Cryptography
RSA, ECDSA, Ed25519, ML-DSA
badkeys
Tool to identify public keys with known vulnerabilities
-----BEGIN PRIVATE KEY-----
MIG2AgEAMBAGByqGSM49AgEGBSuBBAAiBIGeMIGbAgEBBDDiVjMo36v2gYhga5Ey
QoHB1YpEVkMbCdUQs1/syfMHyhgihG+iZxNxqagbrA41dJ2hZANiAARbCQG4hSMp
brkZ1Q/6GpyzdLxNQJWGKCv+yhGx2VrbtUc0r1cL+CtyKM8ia89MJd28/jsaOtOU
MO/3Y+HWjS4VHZFyC3eVtY2ms0Y5YTqPubWo2kjGdHEX+ZGehCTzfsg=
-----END PRIVATE KEY-----
This private key is not secure.
Can you see why?
Public Private Keys
Current work on badkeys
1. Find more Public Private Keys
2. Check Public Keys with badkeys (TLS certificates, DNSSEC, DKIM, ...)
Supported by NLnet/NGI0
Where to find Public Private Keys?

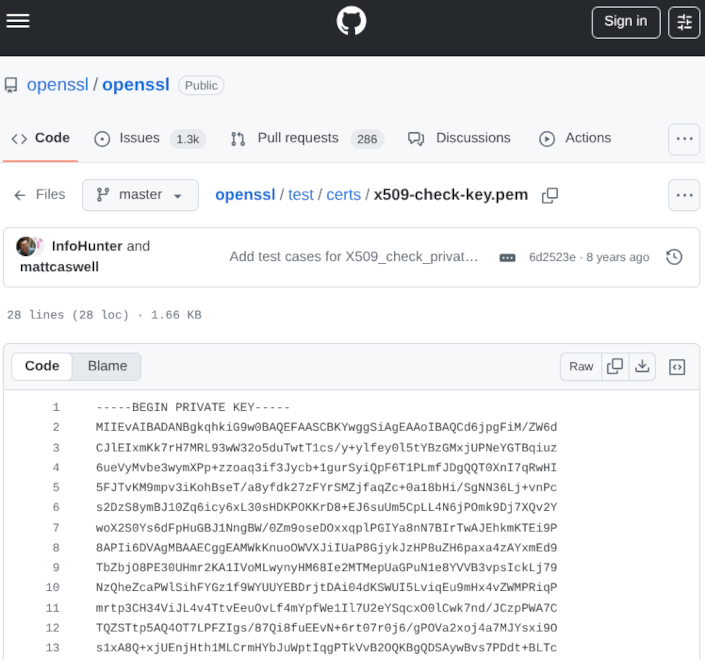

- Source Code (tests, ...)

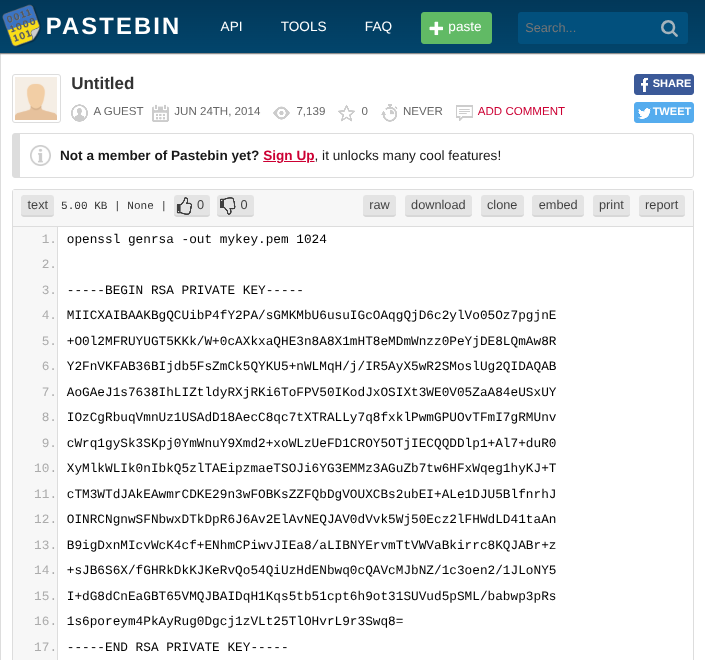

- The World Wide Web (documentation, blog posts, ...)
- Firmware (many hardcoded keys!)
- ...
Private Keys come in different shapes and forms
k = "-----BEGIN EC PRIVATE KEY-----\n" +
"MHcCAQEEIObLW92AqkWunJXowVR2Z5/+yVPBaFHnEedDk5WJxk/BoAoGCCqGSM49\n" +
"AwEHoUQDQgAEQiVI+I+3gv+17KN0RFLHKh5Vj71vc75eSOkyMsxFxbFsTNEMTLjV\n" +
"uKFxOelIgsiZJXKZNCX0FBmrfpCkKklCcg==\n" +
"-----END EC PRIVATE KEY-----\n";
Private-key-format: v1.2
Algorithm: 8 (RSASHA256)
Modulus: wVwaxrHF2CK64aYKRUibLiH30KpPuPBjel7E8ZydQW1HYWHfoGm
idzC2RnhwCC293hCzw+TFR2nqn8OVSY5t2Q==
PublicExponent: AQAB
PrivateExponent: UR44xX6zB3eaeyvTRzmskHADrPCmPWnr8dxsNwiDGHzrMKLN+i/
HAam+97HxIKVWNDH2ba9Mf1SA8xu9dcHZAQ==
Prime1: 4c8IvFu1AVXGWeFLLFh5vs7fbdzdC6U82fduE6KkSWk=
Prime2: 2zZpBE8ZXVnL74QjG4zINlDfH+EOEtjJJ3RtaYDugvE=
Exponent1: G2xAPFfK0KGxGANDVNxd1K1c9wOmmJ51mGbzKFFNMFk=
Exponent2: GYxP1Pa7CAwtHm8SAGX594qZVofOMhgd6YFCNyeVpKE=
Coefficient: icQdNRjlZGPmuJm2TIadubcO8X7V4y07aVhX464tx8Q=
keyfinder
https://github.com/badkeys/keyfinder

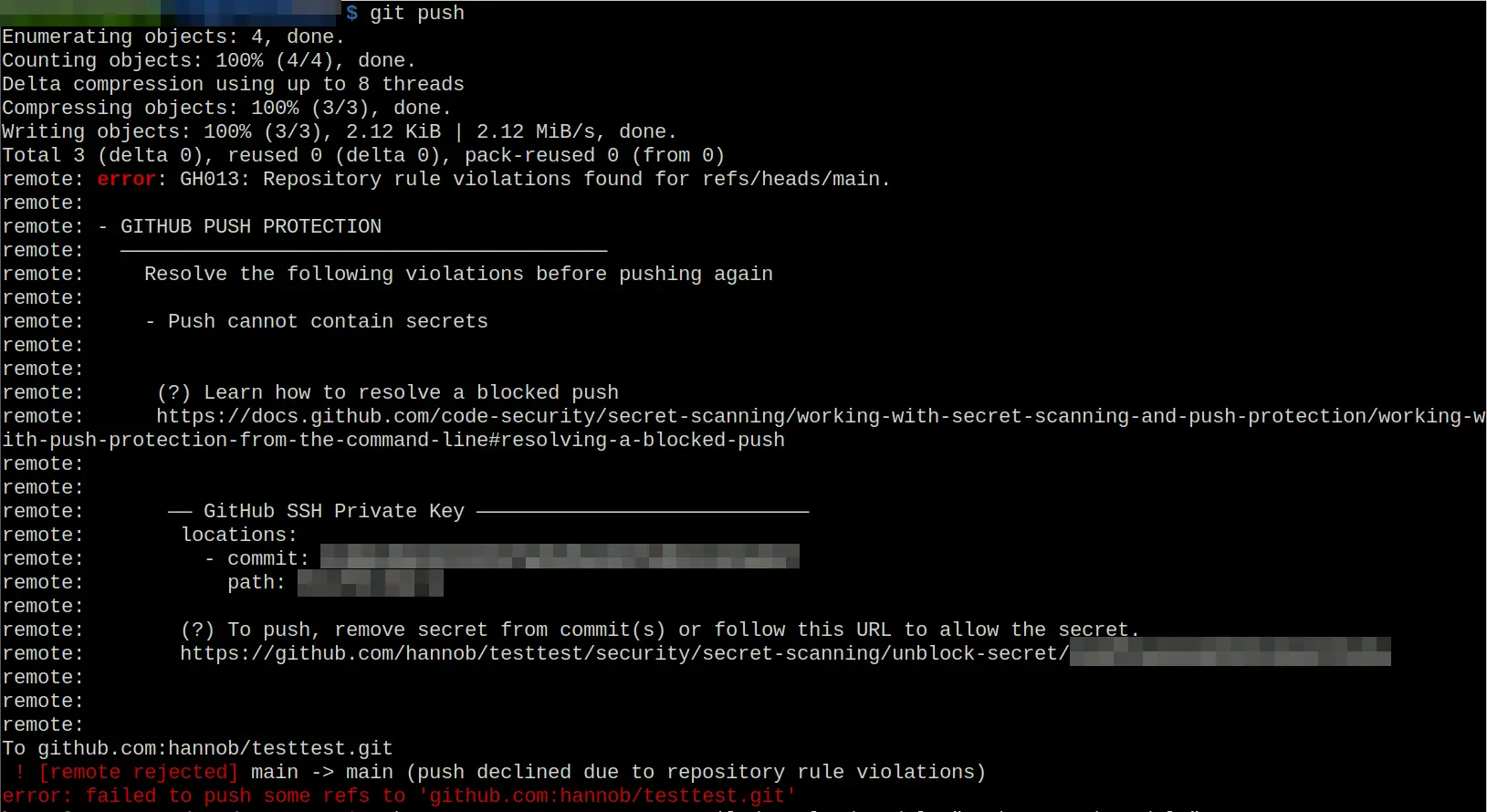

GitHub Secret Scanning
If you try to upload a private key to GitHub that belongs to a GitHub account, push will be blocked and it will tell you
You want to know to which user it belongs?
ssh -i [privatekey] git@github.com
Hi [username]! You've successfully authenticated, but GitHub does not provide shell access.
DNSSEC
DNSSEC: Not many findings
2 hosts using example key from RFC
DKIM
Key Formats are hard, DKIM edition
v=DKIM1; k=rsa; p=MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAplysJ1bZ2xrWbnLwLr0yRijIeLSKIkmHKIRFYoDc4omsQOGU7yv6xxpRfjiUDoTTO2E4InayR68pWGSU0lPv8Q7fBVE/UcH5JfP7IJGsEsPTCUMxZY2M9e7Kg7J1LrPNpiV8P6xcGyDHA1RyGMUwFS86rjzXK//9o+8szgzSTY7X7cio/J+a/5bKaVF0vva9YNS+WHI6LxnYzHZQbFGZNIZnAlKPd+LHnbwfYKU20QgZKeHguGOi4VMb77wUFlXrRjEafmKQlfsAyyKrkzs42nYk/UuxRZcqadJAEo87umgeQPjbyc64LazMTcQOSBqTBX59CaF0DBP3RggmN0CpdwIDAQAB
RFC 6376 (DKIM spec)
The "rsa" key type
indicates that an ASN.1 DER-encoded [ITU-X660-1997] RSAPublicKey
(see [RFC3447], Sections 3.1 and A.1.1) is being used in the "p="
tag.
RFC 6376 (DKIM spec)
To extract the public-key component from the private key, use openssl
like this:
$ openssl rsa -in rsa.private -out rsa.public -pubout -outform PEM
[...]
$ORIGIN _domainkey.example.org.
brisbane IN TXT ("v=DKIM1; p=MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQ"
"KBgQDwIRP/UC3SBsEmGqZ9ZJW3/DkMoGeLnQg1fWn7/zYt"
"IxN2SnFCjxOCKG9v3b4jYfcTNh5ijSsq631uBItLa7od+v"
"/RtdC2UzJ1lWT947qR+Rcac2gbto/NMqJ0fzfVjH4OuKhi"
"tdY9tf6mcwGjaNBcWToIMmPSPDdQPNUYckcQ2QIDAQAB")
DKIM spec says PKCS #1, but uses SPKI in example
In practice, everyone uses SPKI
Scanning DKIM keys
To get DKIM keys, you need a "selector"
selector._domainkey.example.com
Get DKIM selectors for domains
Option 1: Scrape from existing emails (public mailing list archives)
Option 2: Bruteforce common selectors (key, dkim, ...)
CVE ID: CVE-2016-9963
Date: 2016-12-15
Credits: Bjoern Jacke <bjoern@j3e.de>
Version(s): 4.69 -> 4.87
Issue: If several conditions are met, Exim leaks private information
to a remote attacker.
Indication
==========
You can check if you where affected already. The mainlog entries look like this:
2016-12-17 09:44:33 10HmaX-0005vi-00 ** baduser@test.ex R=client T=send_to_server H=ip4.ip4.ip4.ip4 [ip4.ip4.ip4.ip4]: PRDR error after -----BEGIN RSA PRIVATE KEY-----\nMIICXQIBAAKBgQDXRFf+VhT+lCgFhhSkinZKcFNeRzjYdW8vT29Rbb3NadvTFwAd\n+cVLPFwZL8H5tUD/7JbUPqNTCPxmpgIL+V5T4tEZMorHatvvUM2qfcpQ45IfsZ+Y\ndhbIiAslHCpy4xNxIR3zylgqRUF4+Dtsaqy3a5LhwMiKCLrnzhXk1F1hxwIDAQAB\nAoGAZPokJKQQmRK6a0zn5f8lWemy0airG66KhzDF0Pafb/nWKgDCB02gpJgdw5rJ\nbO7/HI3IeqsfRdYTP7tjfmZtPiPo1mnF7D1rSRspZjOF2yXY/ky7t7c5xChRcSxf\n+69CknwjrfteY9Aj0j6o7N+2w2uvHO+AAq8BHDgXKmPo0SECQQDzQ/glyhNH9tlO\nx+3TTMwwyZUf2mYYosN3Q9NIl3Umz/3+13K5b6Ed6fZvS/XwU55Qf5IBUVj2Fujk\nRv2lbGPpAkEA4okpnzYz5nm1X5WjpJPQPyo8nGEU1A5QfoDbkAvWYvVoYrpWPOx5\nHFpOAHkvSk1Y1vhCUa+zHwiQRBC8OMp6LwJBAOAUK/AjQ792UpWO9DM++pe2F/dP\nZdwrkYG6qFSlrvQhgwXLz5GgkfjMGoRKpDDL1XixCfzMwfVtBPnBqsNGJIECQGYX\nSIGu7L7edMXJ60C9OKluwHf9LGTQuqf4LHsDSq+4Rz3PGhREwePsMqD1/EDxEKt4\noHKtyvyeYF28aQbzARMCQQCRtJlR6vlKhxYL8+xoPrCu3MijKgVruRUcNstXkDZK\nfKQax6vhiMq+0qIiEwLA1wavyLVKZ7Mfag+/4NTcDUVC\n-----END RSA PRIVATE KEY-----\n: 550 PRDR R=<baduser@test.ex> refusal
That key was used in production until 2025
Anyone remembers CVE-2008-0166?
Also known as the Debian OpenSSL bug
DKIM scan in early 2024 (Tranco Top 1 Million)
Around 350,000 TXT records with a valid RSA key.
855 vulnerable to Debian OpenSSL bug (0.24%).
Domains with vulnerable keys
@cisco.com, @oracle.com, @skype.net, @github.partners, @partner.crowdstrike.com, @partners.dropbox.com, @1password.com, @seznam.cz
Why?
- 2006: Debian OpenSSL bug was introduced
- 2007: DKIM was published (RFC 4870)
- 2008: Debian OpenSSL bug was found
https://16years.secvuln.info/
More details in talk at MiniDebConf 2024
Fortinet / FortiGate
CVE-2022-40684
Authentication Bypass in FortiGate devices
It was known that this was actively exploited in 2022
January 2025
~15.000 configuration files from FortiGate devices published on BreachForums
These configuration files contain private keys, but they are encrypted with a password
The configuration files also contain the password, but the password is also encrypted with another password
The password to decrypt the key password is "Mary had a littl"
FortiGate (2025)
Private keys for ~100 still valid TLS certificates and ~300 ACME accounts for Let's Encrypt.
Remember: incident was known since 2022!
"Enterprise Security"
OpenID Connect
https://example.com/.well-known/openid-configuration
JSON Web Key Public
{
"kty": "EC",
"crv": "P-256",
"x": "MKBCTNIcKUSDii11ySs3526iDZ8AiTo7Tu6KPAqv7D4",
"y": "4Etl6SRW2YiLUrN5vfvVHuhp7x8PxltmWWlbbM4IFyM"
}
JSON Web Key Private
{
"kty": "EC",
"crv": "P-256",
"x": "MKBCTNIcKUSDii11ySs3526iDZ8AiTo7Tu6KPAqv7D4",
"y": "4Etl6SRW2YiLUrN5vfvVHuhp7x8PxltmWWlbbM4IFyM",
"d": "870MB6gfuTJ4HtUnUvYMyJpr5eUZNP4Bk43bVdj3eAE"
}
JSON Web Keys have the peculiar property that the format for public and private keys is almost identical
Public key? Private key?
Nobody would confuse them, right?
Scan result OpenID Connect setups
- Private keys instead of public keys
- Keys that were examples from OpenID Connect libraries
- 512 bit RSA keys
Thanks for listening!
Use badkeys!
